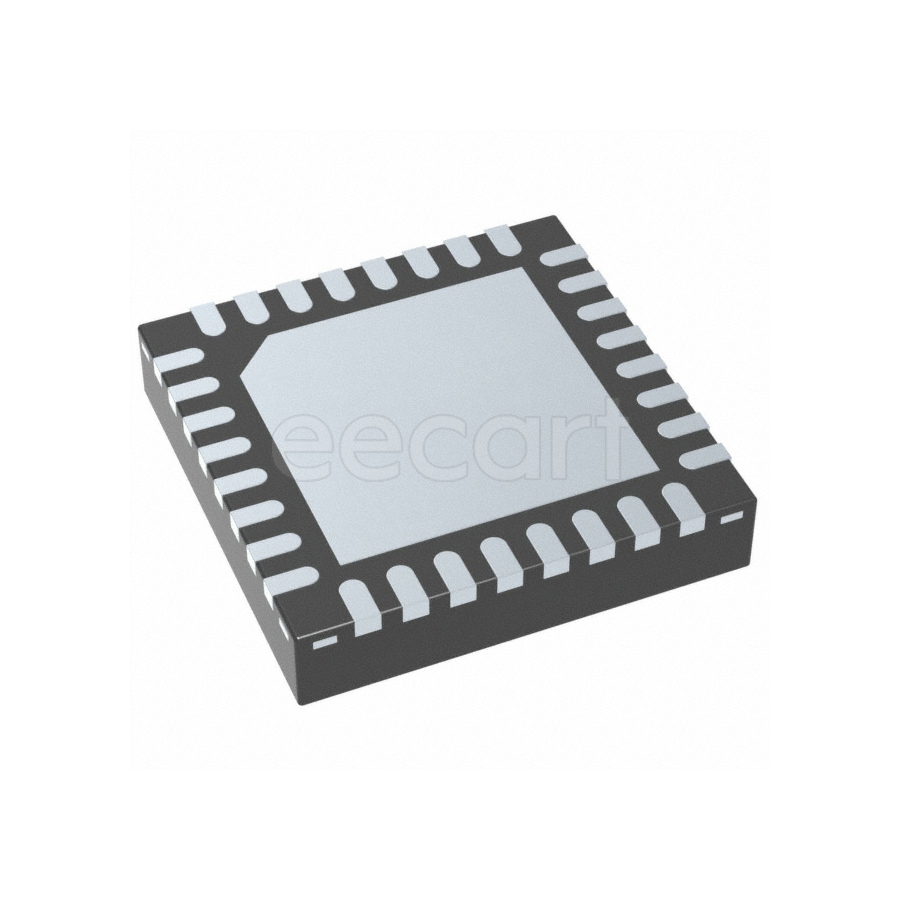

TLC5946RHBR
Manufacturer:
Texas Instruments
Mfr.Part #:
TLC5946RHBR
Datasheet:
Description:
LED Drivers VFQFN-32 SMD/SMT
| Parameter | Value |
|---|---|
| Length | 5 mm |
| Width | 5 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 32 |
| Height | 1 mm |
| Thickness | 0.9 mm |
| Radiation Hardening | No |
| Contact Plating | Gold |
| Frequency | 30 MHz |
| Min Input Voltage | 3 V |
| Output Voltage | 17 V |
| Lifecycle Status | Active |
| Max Power Dissipation | 3.482 W |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 3 V |
| Power Dissipation | 3.482 W |
| Max Output Current | 40 mA |
| Max Supply Current | 45 mA |
| High Level Output Current | -1 mA |
| Low Level Output Current | 5 mA |
| Max Input Voltage | 5.5 V |
| Number of Outputs | 16 |
| Nominal Supply Current | 45 mA |
| Number of Segments | 16 |
| RoHS | Compliant |
| Packaging | Reel |
| Type | LED Display Drivers |
Stock: 6
Distributors
pcbx
pcbxUnit Price$2.35704
Ext.Price$2.35704
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.35704 | $2.35704 |
| 10 | $2.30076 | $23.00760 |
| 25 | $2.27519 | $56.87975 |
| 50 | $2.24990 | $112.49500 |
| 100 | $2.22486 | $222.48600 |
